Runway and Columns

Mussell Crane offers a wide range of Runway and Column Support Systems

At Mussell Crane, every runway and support system that is manufactured is built custom to your specific needs. There are many different styles of runways and support systems such as top running, under running, free standing, and tied back, just to name a few. With over 26 years of experience in the industry and a customer list in the thousands, we are confident that we can supply the very best possible product for your needs.

Top Running Runway

Crane Components | Runway and Columns

Runway systems designed for top running cranes include a rail on which the end trucks run. This rail is fastened to the top of the runway beam either by welds (for square bar rails) or hook bolts (for ASCE rail). The runway beam is supported by columns and/or corbels.

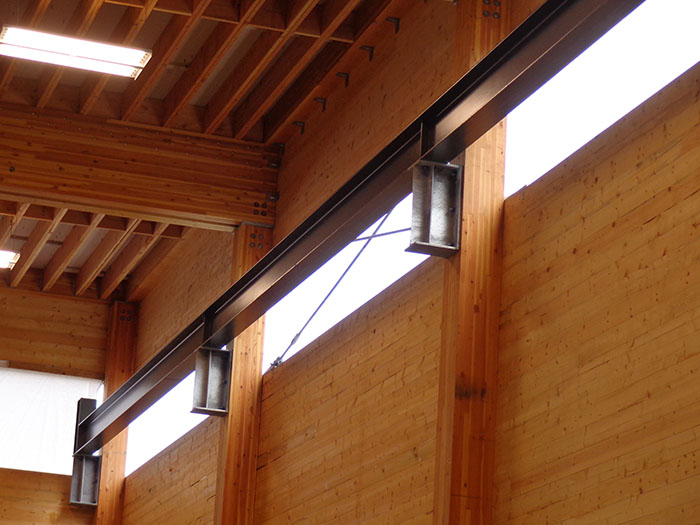

Runway on Steel Corbels & Wood Building Frame
Runway on Concrete Corbels & Concrete Columns

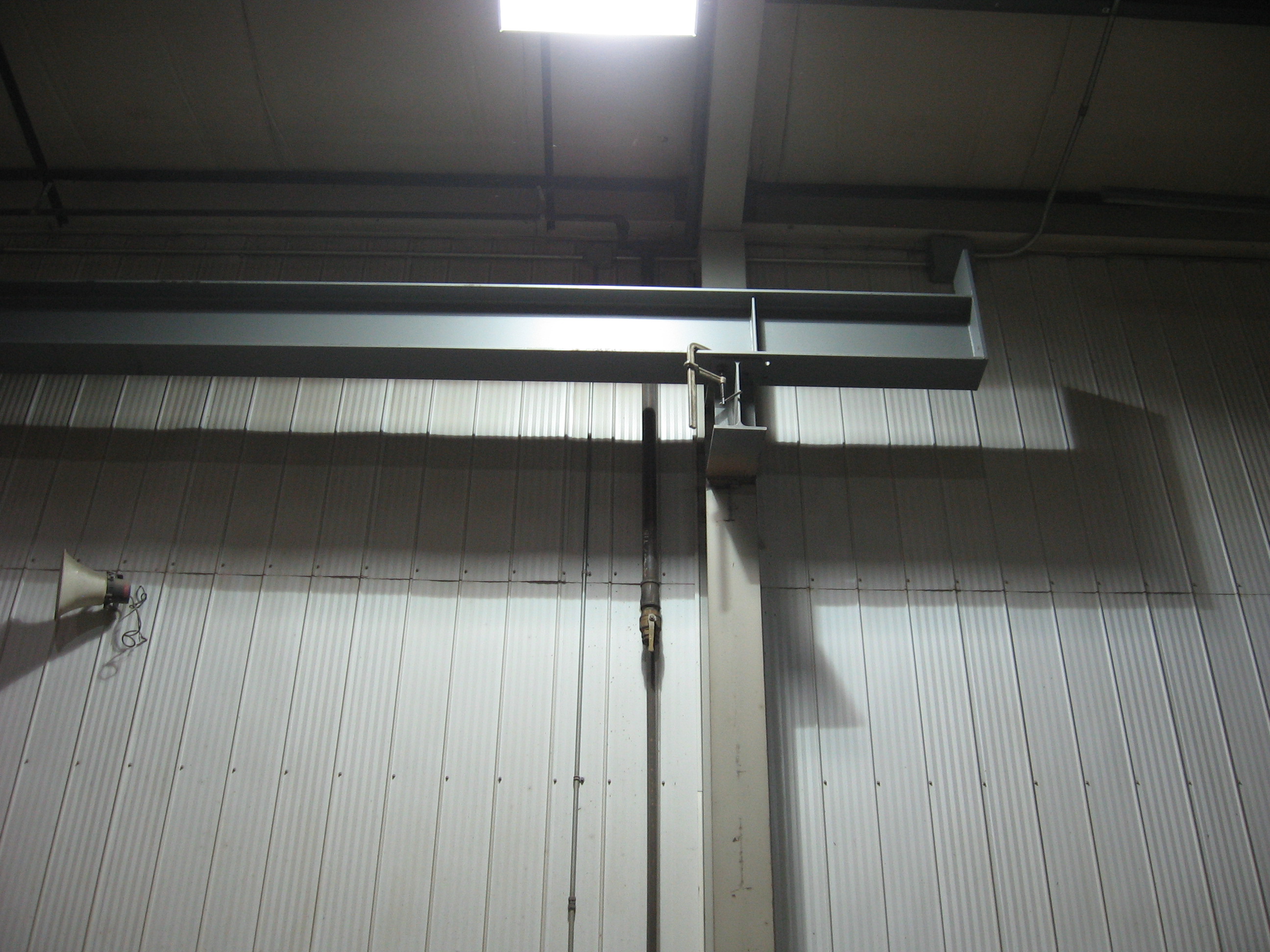

Runway on Steel Corbels & Steel Building Frame

Under Running Runway

Crane Components | Runway and Columns

Under running systems run on beams that are suspended from the building frame or corbels. They may also be suspended from a header in a free standing system.

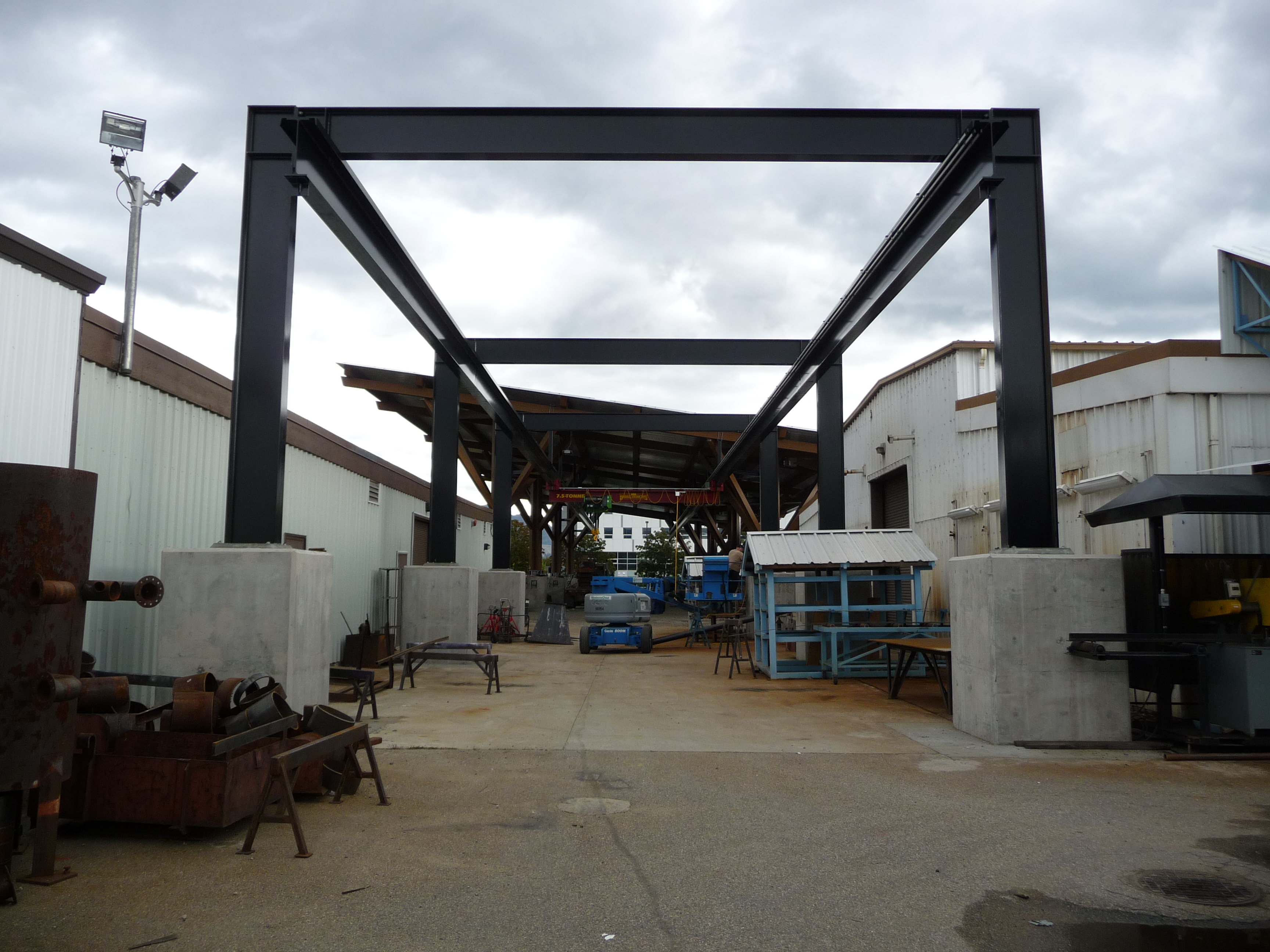

Runway Mounted to Steel Header & Steel Frame

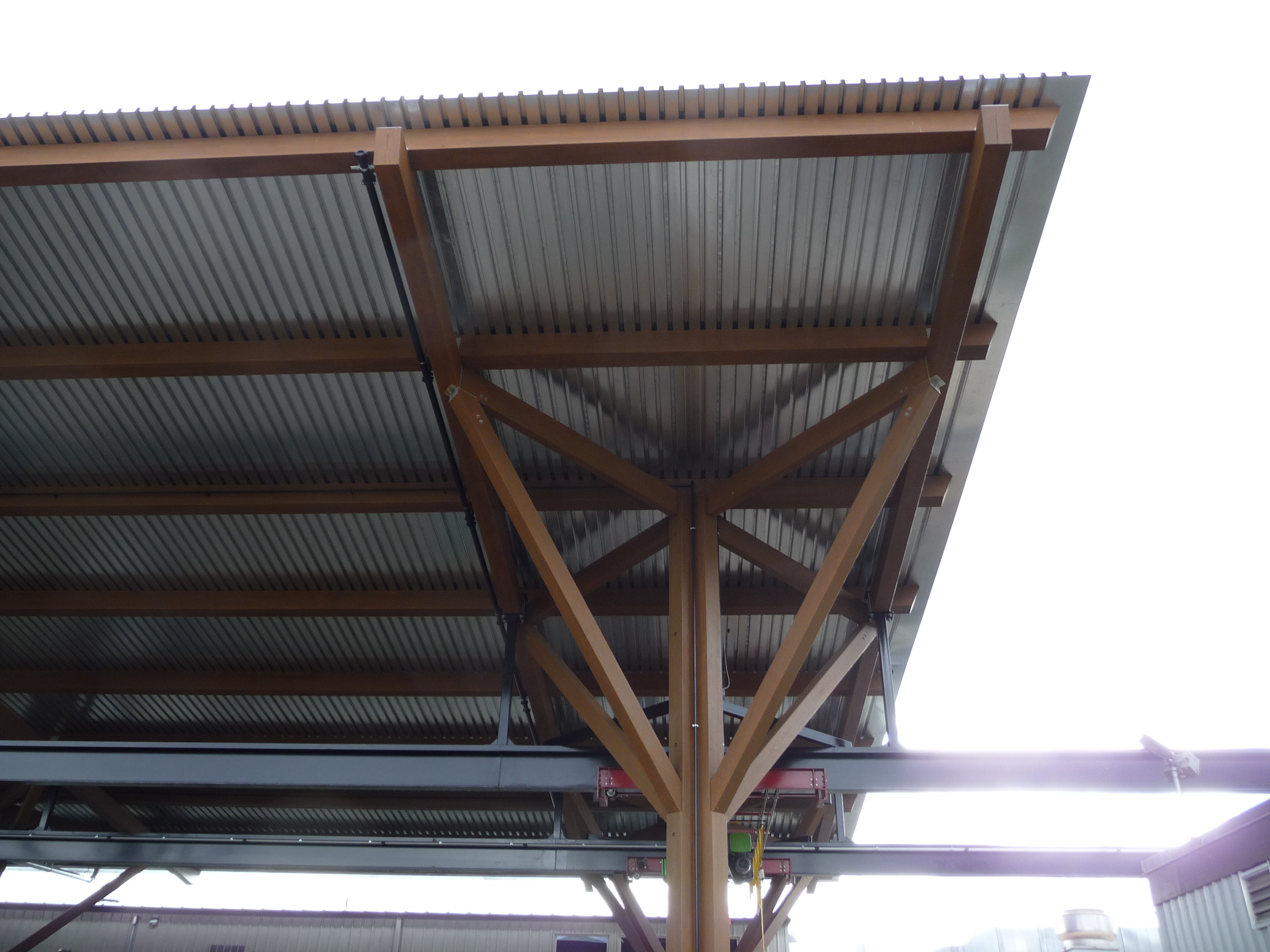

Runway Mounted to Wood Rafter w/ Drop Hanger

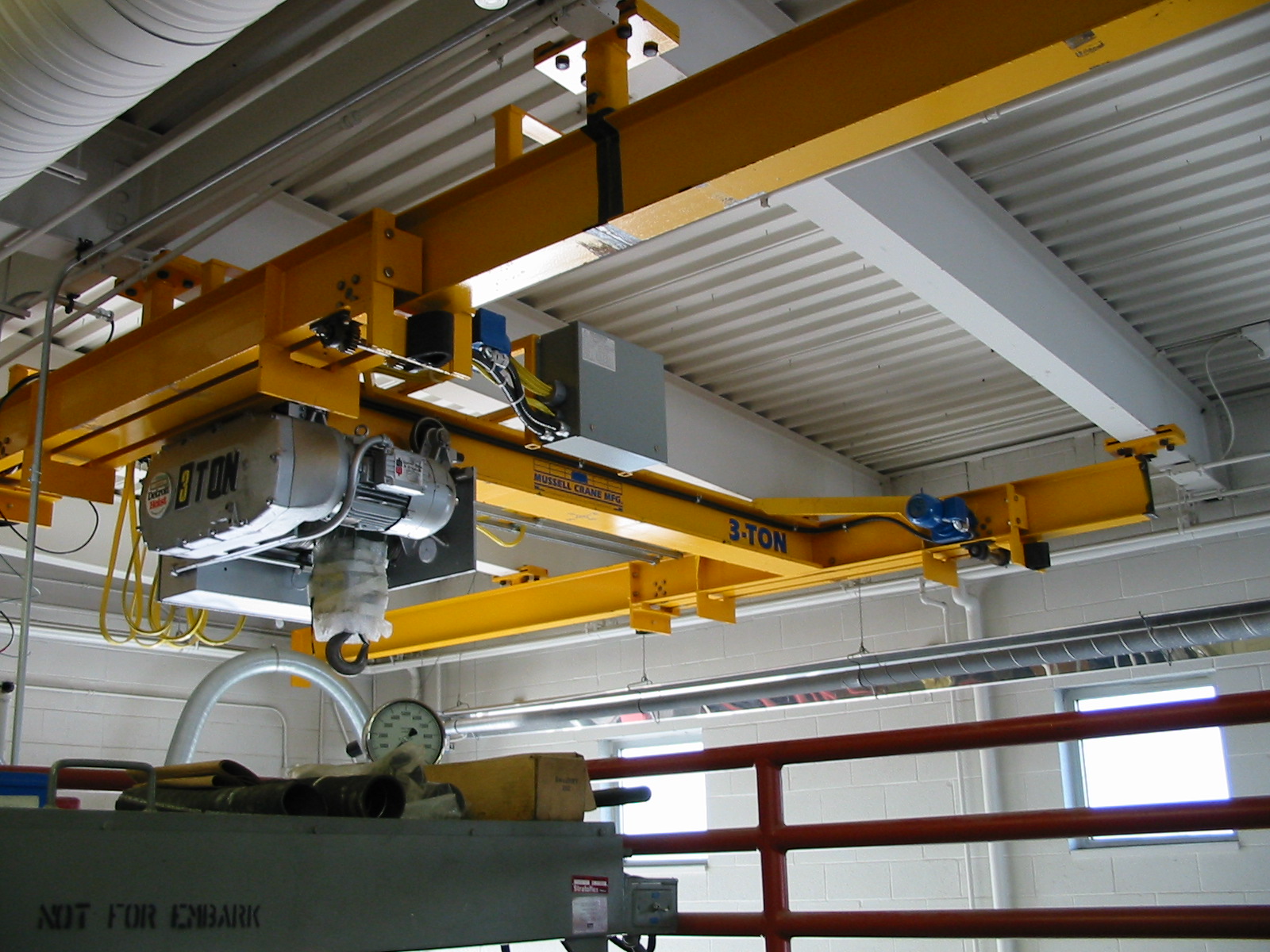

Runway Mounted to Steel Beam w/ Drop Hanger

Free Standing Columns

Crane Components | Runway and Columns

Columns come in many styles depending on the support required, including single-leg, double-leg, free-standing, or tied-back to the building if additional support is needed.

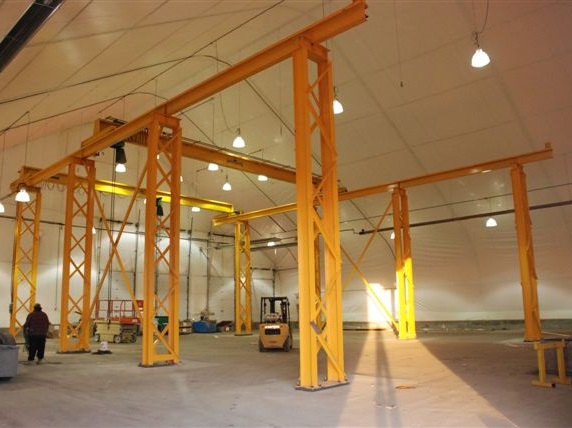

Free Standing Double Leg Column w/ Cross Braces

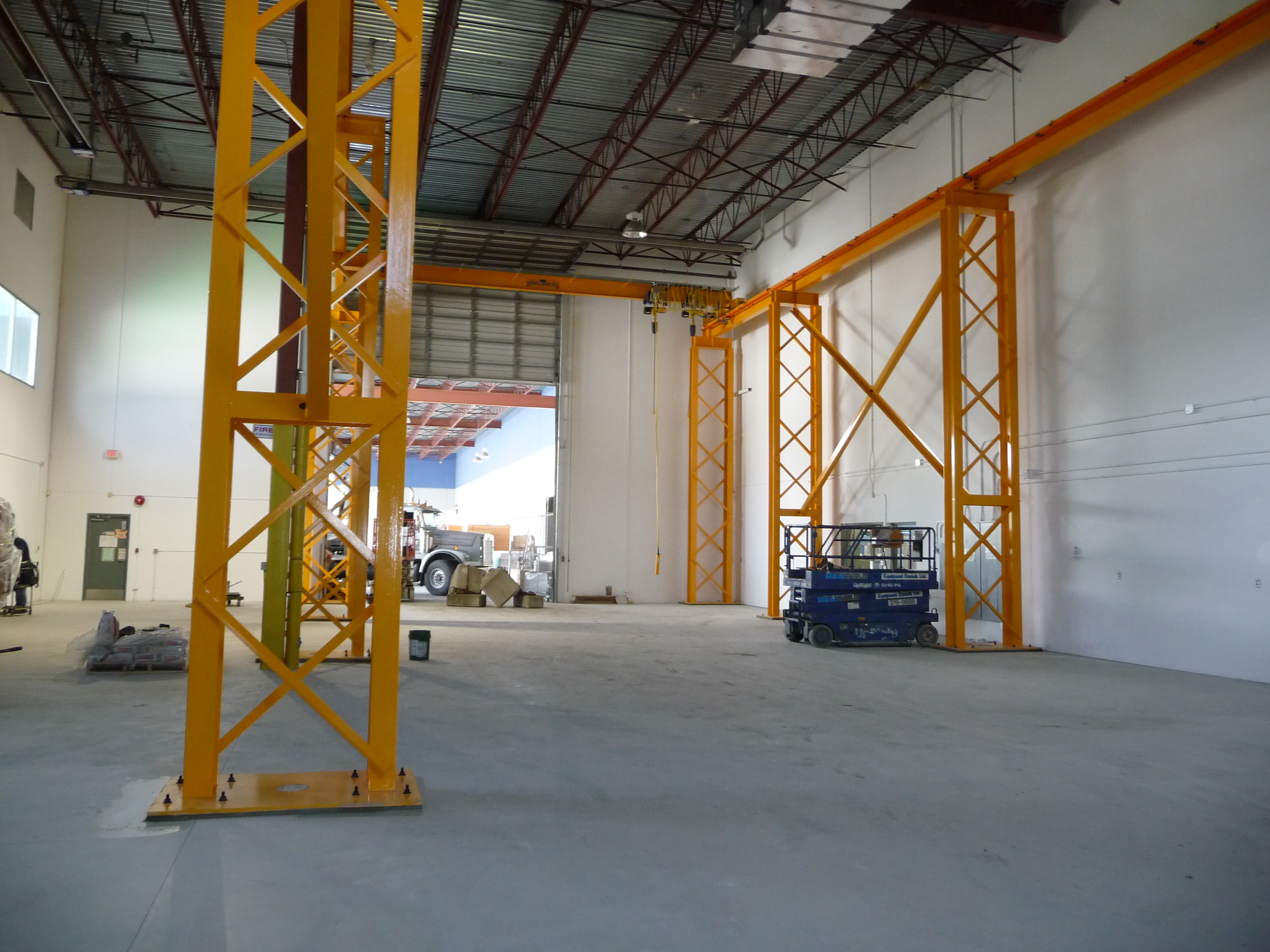

Free Standing Double Leg Column w/ Cross Braces

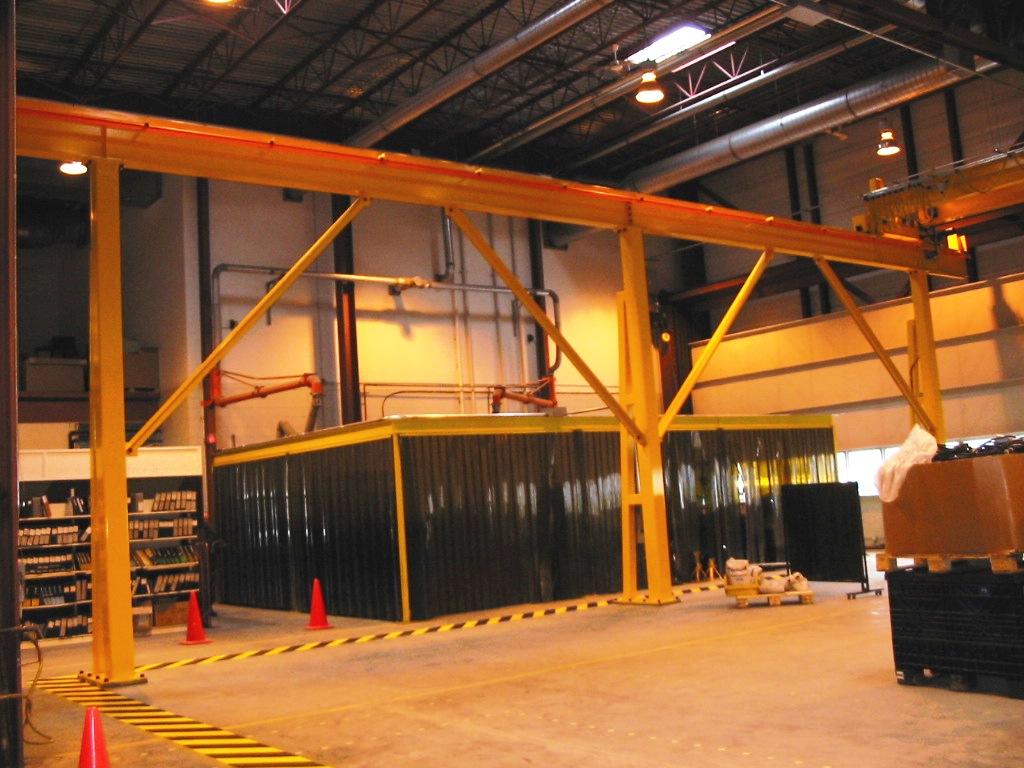

Free Standing Single Leg Column w/ Braces
