Mussell Wheels
Mussell Crane offers the most advanced & versatile wheels for a variety of industrial applications.
Our special ductile alloy cast wheels are superior to other wheels in that our design allows for larger load capacity, are better impact resistant, have better surface definition, and last longer.
The larger axle diameters provide greater load transfer and are suited for both tube style and standard channel constructed end trucks. Our heavy-duty wheel designs feature precision CNC machined treads, bores, gears and flanges.
All "C Class" wheels are assembled with double sealed ball bearings (5,000 hr. rated) designed to achieve higher capacities & smoother running qualities. They are therefore especially appropriate for applications with high demands for quieter running, minimum vibration, and lower maintenance end trucks.
The combination of low cost, availability & versatility makes our line of single & double flange wheels and accessories #1.
Standard Single Flange Plain Wheels
Crane Wheels | Mussell Wheels

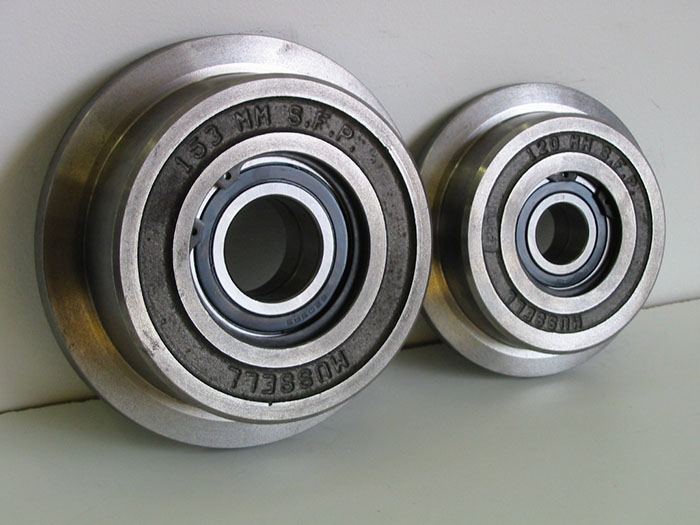

153mm and 120mm single flange plain wheels pictured right. Additional sizes available. Machined in-house.
Standard Double Flange Plain Wheels
Crane Wheels | Mussell Wheels

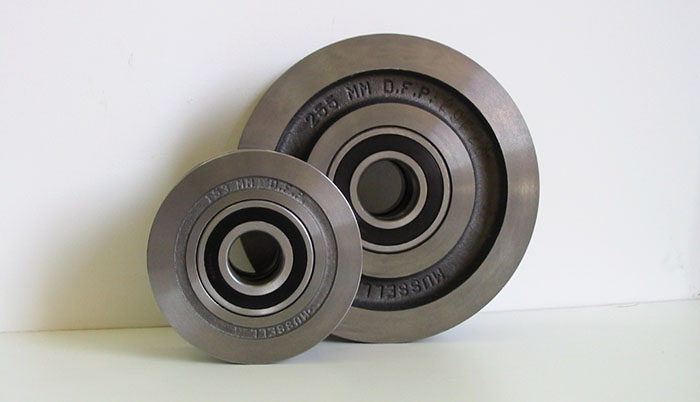

153mm and 255mm double flange plain wheels pictured right. Additional sizes available. Machined in-house.
Single Flange Geared Wheels
Crane Wheels | Mussell Wheels

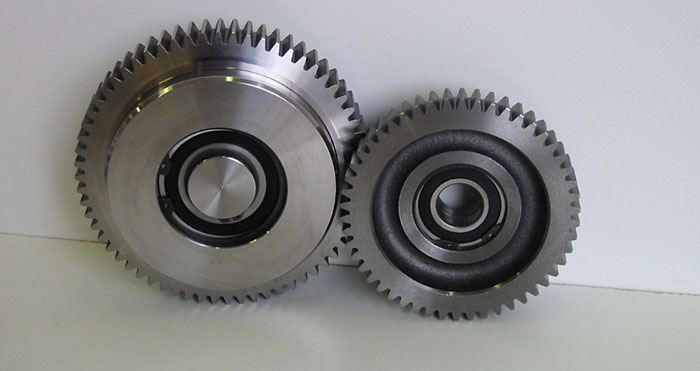

Single flange geared wheels pictured right. Additional sizes available. Machined in-house.

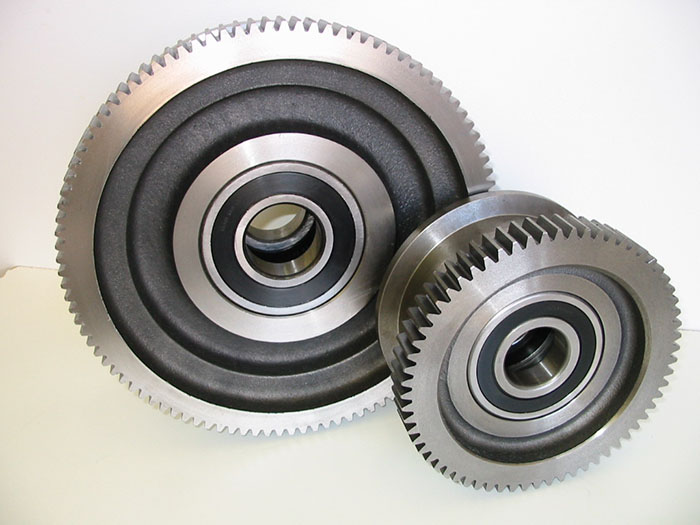

Standard Double Flange Geared Wheels
Crane Wheels | Mussell Wheels
Double flange geared wheels pictured right. Additional sizes available. Machined in-house.
Chain Wheels
Crane Wheels | Mussell Wheels

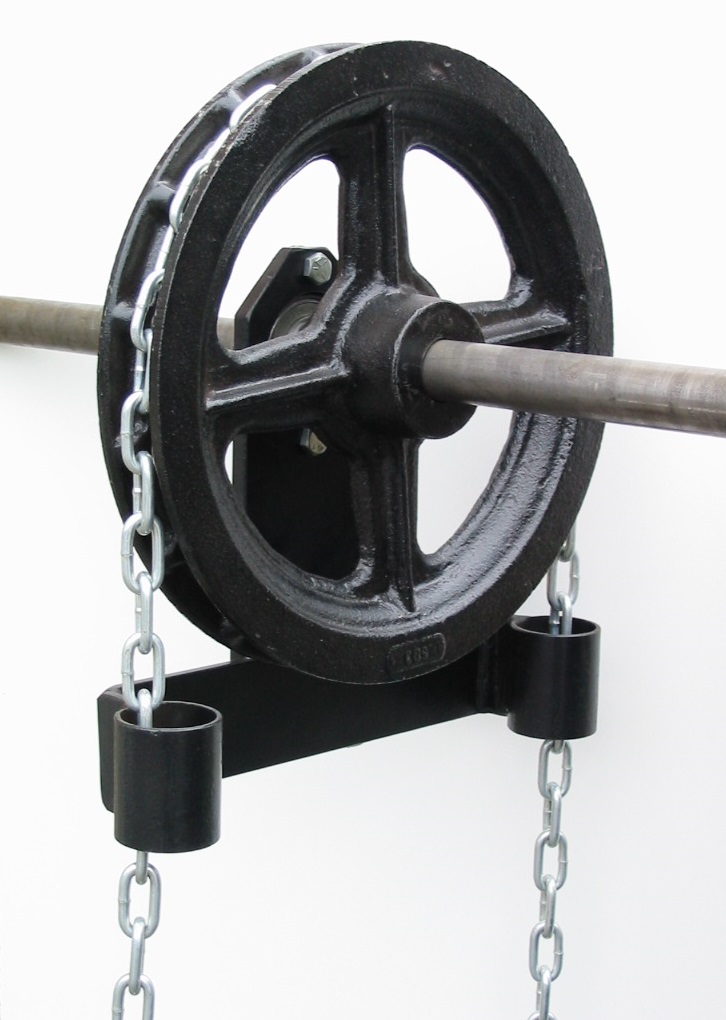

Chain wheels are an effective means of manually operating overhead hand geared trolleys and end trucks.
The hand chain operated wheel turns a shaft and pinion which meshes with steel gears for ease of operation and accurate spotting. The chain guide keeps the chain aligned with the wheel and helps prevent fouling.
Our standard 10" diameter chain wheels are cast in ductile iron grade 80-55-06 and finished with industrial strength enamel. Chain wheels are designed to suit a standard 1" bore shaft size and 3/16" alloy link chain (1" Std.).
